Describe an activity to show that thermoplastic is a poor conductor of electricity.
1 Answer
0
07/04/2021 9:13 pm

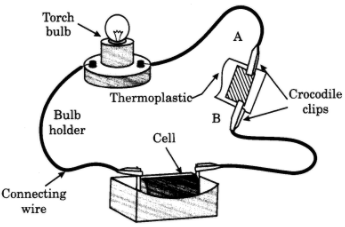

Arrange a circuit as shown in the given figure. Leave a gap between two ends of the wire. Place a thermoplastic in the gap. Observe the bulb.
It is observed that the bulb does not glow. This shows that thermoplastic is a poor conductor of electricity.
An electric circuit test materials for their electric conductance
