26/01/2022 12:40 pm
Topic starter

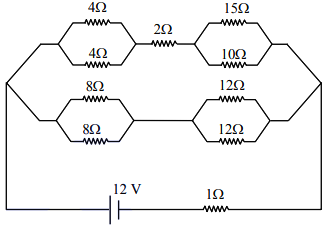

The voltage drop across 15Ω resistance in the given figure will be______V.
1 Answer
0
26/01/2022 12:43 pm
⇒ effective circuit diagram will be
Point drop across 6Ω = 1 × 6 = 6 = VAB
Hence point drop across 15Ω = 6 volt = VAB
