30/12/2021 1:36 pm
Topic starter

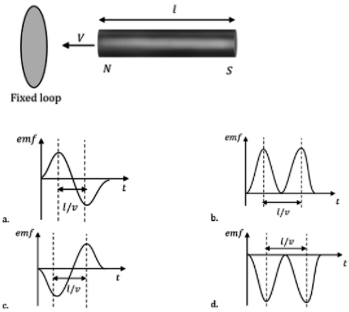

A Bar magnet moving with velocity ‘V’ towards a fixed conducting circular loop. Find the graph of emf vs t. consider anticlockwise emf as positive emf where the observer is right of the south pole of the magnet.
1 Answer
1
30/12/2021 1:38 pm
Correct answer: (a)
Explanation:
As the magnet is approaching the loop, magnetic flux increases and the rate of increment of flux also increases so emf increases with time.
At this moment emf is maximum
Magnet is in the middle of the coil, at this moment emf is equal to zero.
Now, again flux start changing however polarity of emf get reverse
Hence, the graph will be
