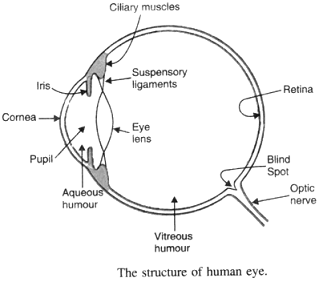

(a) Draw a simple diagram of the human eye and label clearly the cornea, iris, pupil, ciliary muscles, eye-lens, retina, optic nerve and blind spot.
(b) Describe the working of the human eye with the help of the above diagram.
(c) How does the eye adjust itself to deal with light of varying intensity?
(b) Working of the human eye
The light rays coming from the object kept in front of the eye enter the cornea, pass through the pupil and fall on the eye lens. The eyes lens is convex lens, so it converges the light rays and produces a real and inverted image of the object on the retina. The image formed on the retina is conveyed to the brain by the optic nerve and gives rise to the sensation of vision.
(c) The eye adjusts itself to deal with light of varying intensity with the help of the iris. The iris automatically adjusts the size of the pupil according to the intensity of light received by the eye. If the intensity of light is large, then iris contracts the pupil and reduces the amount of light entering the eye. And, if the intensity of light is small, then iris expands the pupil so that more light may enter the eyes.
