16/08/2021 1:32 pm
Topic starter
Describe with the help of a ray diagram, the size, nature and position of the image formed by a convex lens when an object is placed beyond 2f in front of the lens.
1 Answer
0
16/08/2021 1:34 pm

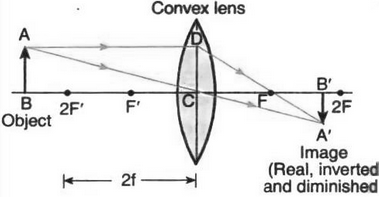

When an object is placed beyond 2f in front of a convex lens, then the image formed is between f and 2f on the other side of the lens, it is real, inverted and smaller than the object.
