Describe with the help of a ray diagram the nature, size and position of the image formed when an object is placed at infinity (considerable distance) in front of a convex lens. State three characteristics of the image so formed.
1 Answer
0
16/08/2021 1:37 pm

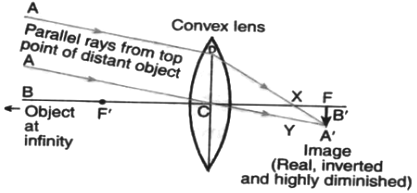

When an object is placed at infinity in front of a convex lens, the image is formed at the focus on the other side of the lens.
Characteristics of image formed:
Image is real.
Image is inverted.
Image is highly diminished.
