Describe with the help of a ray diagram, the formation of image of a finite object placed in front of a convex lens between f and 2f Give two characteristics of the image so formed.
1 Answer
0
16/08/2021 12:53 pm

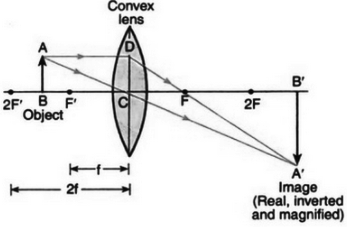

If object is placed in between f and 2f, the image will form on the other side of the lens beyond 2f as shown below.
Characteristics of image formed:
- Image formed is real and inverted.
- Image formed is magnified.
