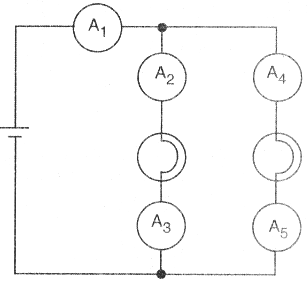

If the lamps are both the same in the figure given below and if A1, reads 0.50 A, what do A2, A3, A4 and A5 read?



0
Topic starter

If the lamps are both the same in the figure given below and if A1, reads 0.50 A, what do A2, A3, A4 and Aread?

1 Answer
0

The total current of 0.5 A flowing in the circuit distributes equally in the two arms having lamps (since the lamps have same resistances). So the current through each arms is 0.25 A. Hence A2, A3, A4 and A5, all will read 0.25 A.
